APRNB Standard parallel card

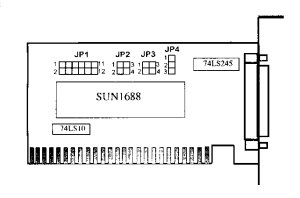

The APRNB is a standard parallel card with bi-directional capabilities. Jumper setup is as follows:

Jp1: Address Selection (marked on card)

Jp2:
1-2 = IRQ 5
3-4 = IRQ 7

Jp3:
1-2 = Normal
3-4 = Bi-Directional

Jp4:
1-2 = Some older printers
2-3 = Most printers

APRNBP PCI Parallel card
The APRNBP is a PCI Plug and Play card, and must be set up using the Windows 95 device drivers. The drivers may be obtained from our FTP site by ftp not available at this time.

Some devices may not work with the default settings of this card (external drives, scanners, etc...) If this is the case, the problem may be solved by manually changing the address of the card to a more standard setting (ie: 378, 278, or 3BC). This change is done in the Device Manager properties for the card.

Included with the Windows 95 driver for this card is a Readme file and system file. These files will aid you in adding this card to a DOS based machine.
